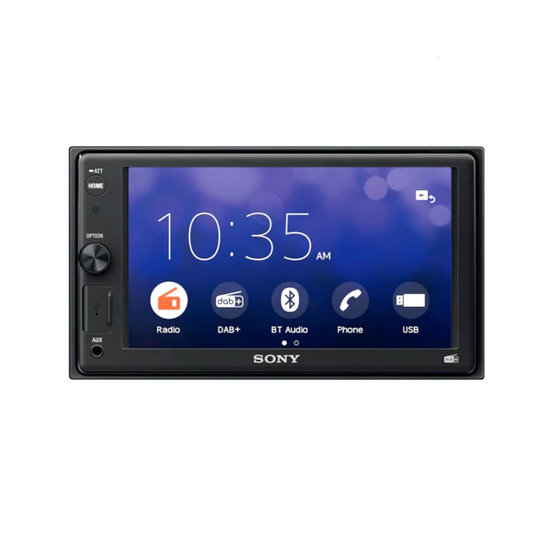

SONY XAV1550D.EUR Headunit 2DIN with phone mirroring

| XAV1550D.EUR

Sony 6.2" touchscreen multimedia head unit with Weblink function allows to mirror the phone display on the radio screen and to control applications on the radio, with parking camera input, external subwoofer outputs, with USB input, Bluetooth for handsfree and music playback, external microphone included, In addition, the radio is ready to receive a DAB/DAB+ digital radio signal


Weblink

It works on the cable transfer (USB) principle between the radio and the phone. No need to be connected to the internet. You can mirror all the contents of your phone. By default, Weblink on the radio displays the Waze navigation icon, but anything you release on your phone appears on the radio too. The Weblink host App is universal for all manufacturers of compatible devices.

Technical parameters:

  • TFT display: 800x480 16:9
  • Brightness: 400 cd/m2
  • Brightness adjustment: Yes
  • Removable panel: No.
  • Button illumination: White
  • Gesture command: Yes, touch gestures
  • Output power: 4x55W
  • Preamplifier output: 3x
  • Rear camera input: Yes PAL/NTSC automatically
  • Parking lines: Yes, fixed - adjustable
  • USB input: Yes, 1x front
  • USB video formats: MPEG4-SP/AVC(H.264 Baseline)/WMV/MKV/XviD(.mp4/.wmv/.mkv)
  • Audio formats: PCM/MP3/WMA/AAC/FLAC(.wav/.mp3/.wma/.m4a/.flac)
  • AUX input: Yes
  • DSO: Yes dynamic stage organizer
  • Bluetooth version 3.0
  • RDS: Yes
  • A2DP: Yes
  • DAB/DAB+
    • frequency range: 174.928 MHz - 239.200 MHz
    • antenna connector: connector for external DAB antenna
  • Dimensions: 178 x 100 x 133 mm (w/h/d)
  • Mounting dimensions: 182 x 111 x 120 mm (w/h/d)

  • Note:
  • Before installation, it is necessary to verify whether it is necessary to use a plastic frame and ISO cabling, or other accessories for a specific type of vehicle.
    To mirror, you need to download the "Weblink Host App" application to your phone
    The radio does not support the original active vehicle audio system if the vehicle is equipped with one from the factory. The unit does not support the display of comfort functions (such as air conditioning) if the original radio supported it.

Package contents:
radio head unit, ISO cabling, external microphone

Mobile Application



Parameters

Manufacturer SONY
Size 2 DIN
Function Bluetooth
Weight 1.935 kg
