SP150-12V

ELTA | SP150-12V

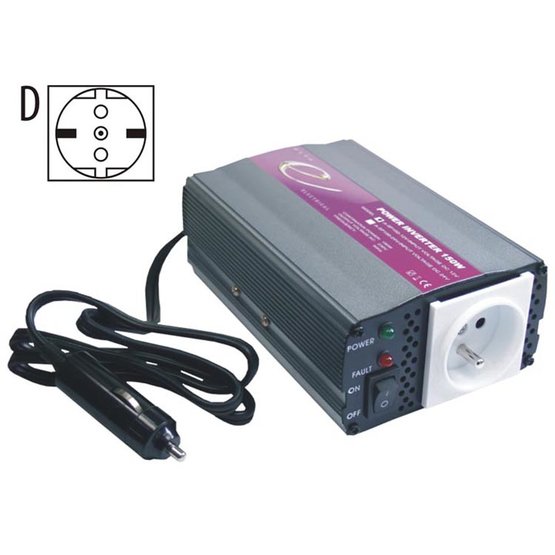

Power inverter DC 12V to AC 230V, 150W
Show price
SP150-12V

Useful Application:

Power supply for notebook, computers, radios, small TVs, VCRs,Lamps, fax,...etc.

Specification:

  • Input voltage range : 10-15V DC
  • Input full load current :15A
  • Standby input current : less 0,21A
  • Output voltage: AC : 230V +/- 5%,modify sinewave
  • Output frequency : 50Hz
  • Continue output power : 150W
  • Peak output power : 450W
  • Efficiency : 90%
  • Battery low shutdown : 10+/- 0,5V DC
  • Battery low pre-alarm : 10,5 +/- 0,5V DC
  • Thermal protect : 60 +/- 5 st C
  • Output short protect : yes
  • Overload protect : yes
  • Battery ex.12V / 24V - yes
  • Battery polarity protect - yes (fuse)
  • Fuse : 15A - 1pcs
  • Dimension: 120x73x73mm
  • Weight : 0,56 kg

Parameters

Weight 0.751 kg
