Steelmate PTS810V10 BTI SILVER parking assistant

| PTS810V10 BTI SILVER

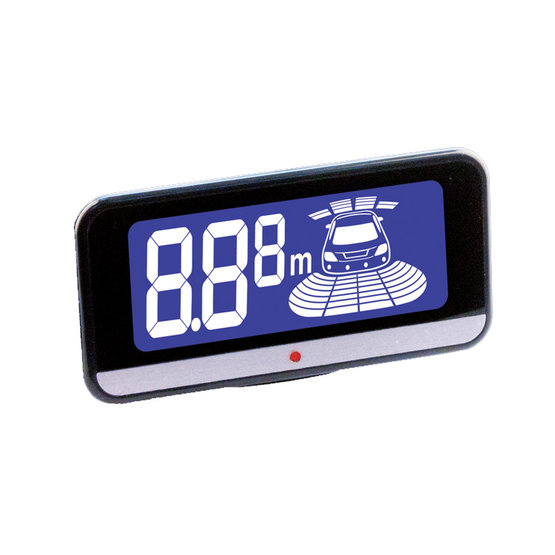

Parking assistant STEELMATE with 8 silver flush sensors 16mm, with only one control unit, designed for installation in the front and rear bumper, with V10 LCD display for convenient visual indication of the distance from obstacles. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook (push the scanning of 20 cm).

Show price
Steelmate PTS810V10 BTI SILVER parking assistant

Parking assistant STEELMATE with 8 silver flush sensors 16mm, with only one control unit, designed for installation in the front and rear bumper, with V10 LCD display for convenient visual indication of the distance from obstacles. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook (push the scanning of 20 cm).
System Description:

  • acoustic, voice and visual alarm
  • sensors are mounted to the rear and front bumper
  • automatic detection of damage to sensors (selftest)
  • if the obstacle is at a distance of 30 cm from the vehicle, it will sound a continuous tone
  • Antihook function - scanning shift + 20 centimeters (spare wheel, frame ...)
  • sensitivity setting, in 2 levels
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • sensor core diameter 14 mm
  • installation hole 16 mm
  • sensors with 10 cm cable with waterproof connector which ensures easy replacement, if necessary
  • supply voltage: 12V DC
  • working power: <2.5W
  • cover range (front / rear): from 0.3 to 1 m / 0.3 to 1.5 meters

Contents:

  • parking sensors 8 pieces
  • display 1x
  • control unit 1x
  • cabling
  • instruction manual
  • warranty card

Note: The control unit contains a 3 pin connector for connecting the display, an old display with 8 pin connector is not compatible!

Parameters

Product type Rear & Front sensors
Manufacturer Steelmate
Display LCD display
Sensors colour silver
Sensor type Flush fit 16mm
Power Suply 12VDC
Weight 1.464 kg
