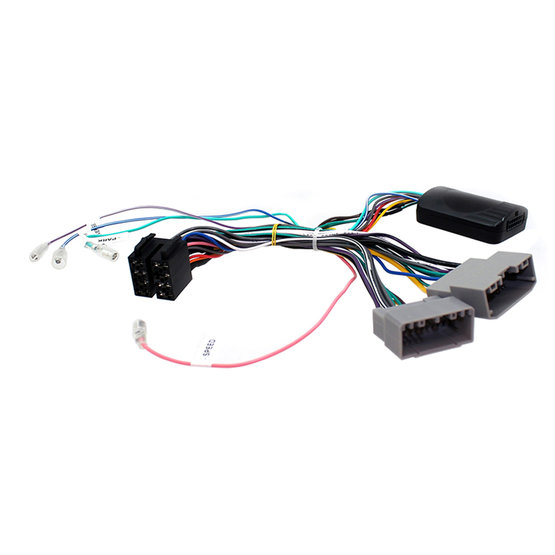

SWC JEE 0C steering wheel control adapter Jeep Chrysler

CONNECTS2 | SWC JEE 0C

Steering wheel control adapter with ISO connector for Chrysler / Dodge / Jeep.

Show price

SWC JEE 0C steering wheel control adapter Jeep Chrysler

CAN-Bus adapter for steering wheel control, to connect car radios with ISO connector
Suitable for cars:

CHRYSLER 300C (2004-2008)
CHRYSLER 300 M [LR] (2002-9 / 2004)
CHRYSLER Aspen (2007-2008)
CHRYSLER Concorde (2002-9 / 2003)
Chrysler Neon (2002-2008)
CHRYSLER Pacifica (2004-2008)
CHRYSLER PT Cruiser [PT] (2002-2005)
Chrysler Sebring [JS] (2002-2008)
CHRYSLER Stratus (1 / 2001-12 / 2006)
Chrysler Town & Country (2001-2007)
CHRYSLER Voyager (2001-2008)
CHRYSLER Grand Voyager (2001-2008)
CHRYSLER 200 (2011->)
CHRYSLER 300C (2008-2011
CHRYSLER Aspen (2008->)
Chrysler Sebring (2007->)
Chrysler Town & Country (2007->)
CHRYSLER Grand Voyager (2008->)
CHRYSLER Voyager (2008->)
CHRYSLER Charger (2008-2011)

Dodge Avenger (2007-2008)
DODGE Caliber (2006-2008)
DODGE Caliber (2009->)
Dodge Caravan (2001-2007)
Dodge Caravan (2008->)
DODGE Dakota (2002-2008)
DODGE Dakota (2008->)
DODGE Durango (2002-2008)
DODGE Grand Caravan (2001-2007)
DODGE Grand Caravan (2007>)
Dodge Challenger (2008->)
DODGE Charger (2006-2008)
DODGE Intrepid (2002-2008)
DODGE Journey (2008-2011)
DODGE MAGNUM (2005-2008)
DODGE Magnum (2008->)
Dodge Neon (2002-2008)
DODGE Nitro (2007->)
DODGE Nitro (6 / 2007-2008)
DODGE RAM (2002-2008)
DODGE RAM (2008-2011)
DODGE Stratus (10 / 2000-10 / 2006)
DODGE Van (2002-2008)
DODGE Viper (2002-2008)

JEEP Grand Cherokee [WH] (2005-2008)
JEEP Commander [XK] (2006-2008)
JEEP Wrangler II. [TJ] (2002-12 / 2008)
JEEP Wrangler III. [JK] (4 / 2007-2008)
JEEP Cherokee (2002-2007)
JEEP Compass (2006-2008)
JEEP Grand Cherokee (2002-2008)
Jeep Liberty (2002-2008)
Jeep Patriot (2006-2008)
JEEP Compass (2009->)
JEEP Grand Cherokee (2008->)
Jeep Liberty (2008->)
Jeep Patriot (2009->)
JEEP Wrangler Unlimited (2007->) (JK)
JEEP Wrangler (2007->) (JK)
JEEP Cherokee (2008->)
Jeep Commander (2008->)

Lancia Flavia (2012->)
Lancia Voyager (2011->)
FIAT Freemont (2008-2011)
Mitsubishi Raider (2009->)
VW Routan (2009->)

- Wiring harness has two types of connectors 2002-2008 Chrysler cars and trucks with a new type of connector built since 2008-
- Adapter supports the steering wheel buttons to control the hands-free kit (if installed in an automobile)
- Controls the OEM amplifier if fitted to a car equipped
- For aftermarket car stereo Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zeneca Becker, Nakamichi, Philips ISO connector *

* - Must be ordered together with connection lead cable for the type of car stereo!

Part of adapter cables with analog signals:
- + 12V after turning the ignition key (sv.15) - encased in an ISO connector
- + 12V after switching on the vehicle lighting - encased in an ISO connector
- Speed pulses
- + 12V after the reverse gear
- GND (- pole) in the handbrake
this information can be used for the installation of aftermarket car stereos, navigation or surveillance systems.

Parameters

Model of the car	200, RAM, Flavia, Charger, Van, Freemont, Avenger, Viper, 300C, Caliber, Grand Cherokee, Raider, 300 M, Caravan, Commander, Aspen, Dakota, Concorde, Durango, Wrangler II., Routan, Magnum, Challenger, Journey, Nitro, Grand Caravan, Intrepid, Wrangler Unlimited, Wrangler III., Cherokee, Liberty, Compass, Wrangler, Patriot, Grand Voyager, Voyager, Pacifica, Neon, Sebring, PT Cruiser, Stratus, Town&Country
Brand of the car	VW, Chrysler, Mitsubishi, Jeep, Lancia, Fiat, Dodge
Weight	0.095 kg
