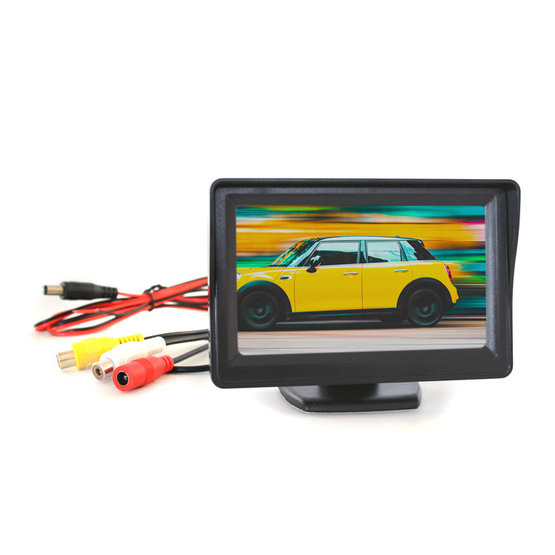

TFT M4.3 Monitor 4.3" 2ch RCA 12V

| TFT M4.3

TFT monitor with a diagonal of 4,3'' designed to display the image from the AV signal in the vehicle. Monitor includes two AV inputs.


Discontinued

TFT monitor with a diagonal of 4,3'' designed to display the image from the AV signal in the vehicle. Monitor includes two AV inputs. The monitor is ideal for connecting with a parking camera.


Technical specifications:

  • Screen size: 4,3'' (11 cm)
  • Resolution: 480 x 272 RGB
  • Power supply: 12V
  • Dimensions: 11.8 cm x 8.7 cm x 3.3 cm (including holder)
  • Standard picture: PAL / NTSC
  • Power consumption: around 1.3W
  • Temperature range: -20 °C to 70 °C
  • Storage temperature: -30 °C to 80 °C.
  • Automatic activation after receiving AV signals
  • Image settings (brightness, contrast, language, etc.)
  • without guide lines, without speakers

Parameters

Plugs CVBS-RCA
Use UNI
For cars passanger
Diagonal 4,3"
Signal analog
Weight 0.212 kg
