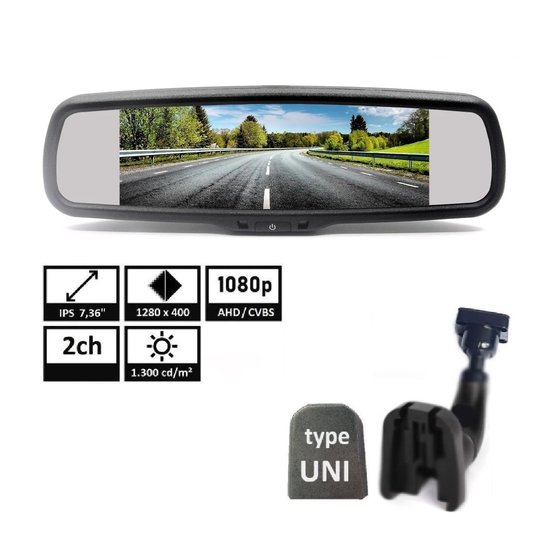

TFT MIRROR7 AHD Monitor in the mirror, with holder and glass base

| TFT MIRROR7 AHD

Universal monitor with IPS display of 7" integrated in the rearview mirror, to display the signal from 2 cameras. The mirror with holder is designed for vans without OEM rearview mirror (metal base must be glued to the glass) or for Ford, Hyundai/Kia, Nissan Toyota, Mazda, ... with same OEM base installed on the glass.

The monitor supports cameras with both CVBS analog and AHD signals.

Show price
TFT MIRROR7 AHD Monitor in the mirror, with holder and glass base

Features:

  • Screen: IPS display 7.36" (18cm) in diagonal
  • Resolution: 1280 x 400
  • Supported signal: AHD 1080p / 720p, CVBS automatically
  • TV Standard: PAL/NTSC automatically
  • HD button at the bottom:
    • vertical image shift           - 4 levels
    • stand-by mode                 - on/off
  • touch buttons on the right side of the display:
    • brightness (max 1300 cd / m2)
    • parking lines                     - on/off (for ch2)
    • ch1/ch2 - switching
  • 2x trigger wire - trigger
  • Power supply: 12V
  • Dimensions: 26.5 x 7.5 x 4.2 cm (without holder)
  • without speaker
  • Power consumption: approx. 7W (0.3W standby)
  • Operating temperature: -20°C to 70°C


In the package:

monitor/mirror, mirror holder, metal base, wiring 2.5m
