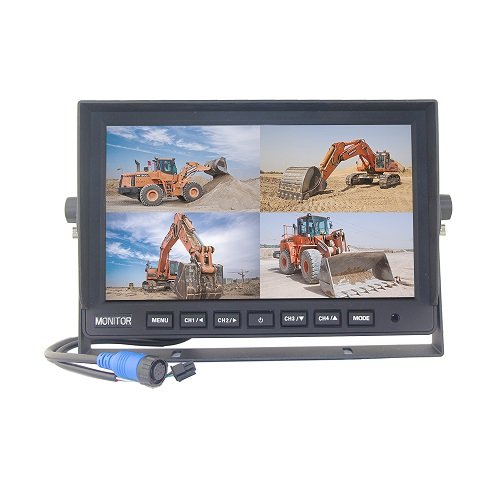

TFT10HD4 Monitor 10" AHD 4ch 4split 4PIN 12/24V

AHD Monitor 10" for vehicles, supporting up to four cameras to connect, simultaneous multiple split view, M12 4PIN screw plugs, 1024x600 resolution, for 12/24V on-board voltage, AHD cameras or analogue cameras with M12 or RCA cinch plugs (using a reduction) compatible, 180° flip image function, ideal to use with rearview camera, side and front camera, or a camera in the cargo area.

TIP: Connect the dedicated trigger wire for each camera (side to turn signal, rear to reverse, ..) The fullscreen of a particular camera will show up automatically, when the driver needs to see it.

Features

• diagonal 10” TFT LCD 16: 9
• 1024 x 600 RGB resolution
• AV input 4x 720p HD video input
• function of simultaneous display of 4 cameras - 4SPLIT
• display options: 1 camera, 2 cameras, 3 cameras, 4 cameras
• trigger wire for each video input (4x)
• image orientation adjustment (left, right, up, down)
• on / off guide lines Yes
• speaker Yes
• backlit buttons
• 300cd / m2 display backlight
• TV system PAL / NTSC - possibility to set for 2+2 cameras individually
• support for AHD, CVBS cameras - possibility to set for 2+2 cameras individually
  • The initial setting of the camera signal must be done in the monitor menu
• minimum shock resistance 4G
• DC power supply 12-24V
• working temperature from -20 to +70 °C
• dimensions 255x 170x 34mm (without shield and stand)

Package contents: monitor, main cabling, remote control, U stand, shield, allen key
