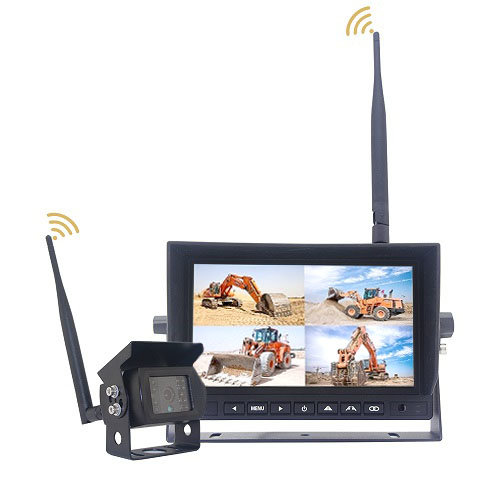

TFT7HDW Monitor 7" wireless set, 4ch 4split 12/24V

Rearview camera - in operation:

The monitor is connected to the ignition and the parking camera to the reversing light. After turning the ignition on, the monitor is in standby/off mode, it can be turned on and controlled by the buttons. After the reverse gear engaged (power supplied to the camera), the image is displayed immediately in the set split mode (4-split from the factory), i.e. the image of the parking camera is of a quarter size

The user has the option to set a suitable split mode permanently. Choose the split mode, depending on how many cameras actually used (are paired). With one camera, only the fullscreen needed to set, then every time reversing, the image will be displayed in full screen.

• 1 camera                       1 channel fullscreen
• 2 cameras                     2-split
• 3 or 4 cameras            4-split
  or
• 3 cameras

  •                           set 2 cameras to 2-split
  •                           and display the third camera manually by a button

Split screen setting (hidden menu)

TIP: Antennas location - Ideally, the antennas should have as little blocked view as possible. When mounting, use an extension cable with a stand and bring one of the antennas as close as possible to the other antenna, you will get a smooth image from the camera even at longer distances (on combined vehicles, etc.)

Features

Common

• maximum coverage of 200 meters in open space
• video compression H264
• FHSS floating frequency
• power cord with waterproof connector
• time delay 120ms
• shock resistance min. 4G
• frequency range 2400 - 2483.5 MHz
• DC 12-24V power supply
• working temperature from -20 to +70 °C

Monitor

• diagolnal 7"picture 16:9 IPS panel
• display resolution 1024 x 600 RGB
• AV input 4x HD wireless video input
• function of simultaneous channels display- 4, 2 SPLIT
• display options: 1 camera, 2 cameras, 4 cameras
• image orientation adjustment (left, right, up, down)
• on/off guide lines Yes
• backlit buttons
• 500cd / m2 display backlight
• auto PAL/NTSC TV system
• without speaker
• without trigger wires
• dimensions 180 x 121 x 24 mm (without shield and stand)

Camera

• 1/2.7” CMOS image sensor
• HD resolution 1280 x 720
• view angle: 140°
• water resistance IP69K
• without microphone
• dimensions 74 x 46 x 56 mm (without shield and stand)
• material aluminum alloy

Package contents: monitor, 1x camera, 2x antenna, 2x 1m power cable, 1x 3m extension cable with antenna stand, shield, double-sided 3M tape, 2x allen key
