WL 7073-73 Light LED Jeep Wrangler, Mercedes G, 9-32V, 73W, 6.570lm

| WL 7073-73

LED headlight 7" 12/24V 55/73W CREE XTE LED


Discontinued

LED headlight 7" 12/24V 55/70W CREE XTE LED

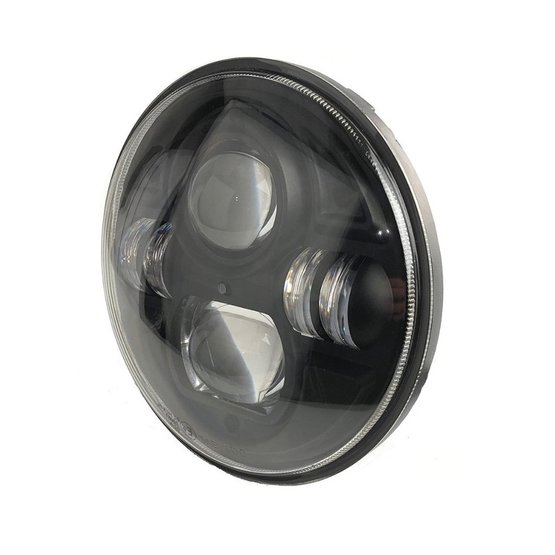

WL 7073 is a 73W high-power combined LED headlight designed to replace the vehicles and motorcycles headlights, with the headlamps of 7" in diameter, is equipped with CREE XTE LEDs, which produce white light close to daylight, the space is illuminated by up to 6.570 lumens, contains high beam, low beam and position lights functions.

  • luminous flux:
    • 70W high beam (6.570lm)
    • 55W low beam (3.850lm)
    • 3W position
  • light color: 5.700K
  • light source: CREE XTE + XBE
  • voltage range: 9-32V
  • water resistance: IP68
  • material: aluminum alloy and PC lens
  • LED life: 30,000 hours
  • operating temperature: -45 °C to +85 °C
  • dimensions: diameter 176mm depth 100mm
  • H4/H13 reduction included in the package
  • wide beam - Flood beam
  • CE, E-Marked R7, R112 approved


Suitable for vehicles:

  • Nissan Patrol GR Y60
  • Mercedes G
  • Jeep Wrangler TJ, JK,
  • Cherooke KJ
  • Landrover Defender
  • Hummer H1, H2, H3
  • motorcycles

Parameters

Luminous flux up to 8000 lm
Voltage 9-32 V
Function Long-distance, Dipped, Parking
Distraction Flood
Application OEM
Manufacturer TSS Group
Weight 1.445 kg
