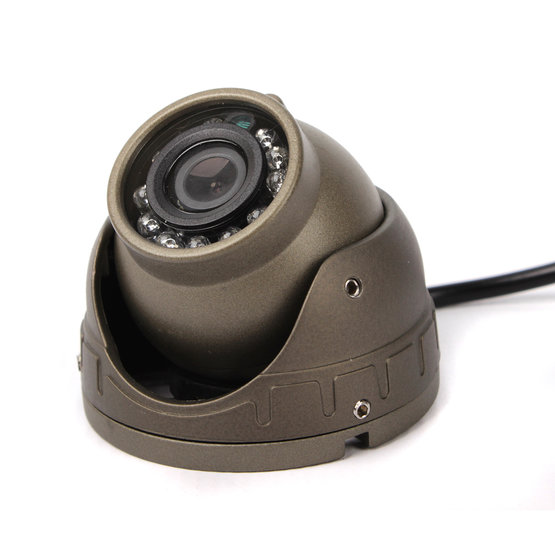

CAM6HD Camera on roof AHD 4PIN auto IR

| CAM6HD

AHD Camera 720p for vehicles, with auto IR, to display on AHD monitor, powered from monitor via M12 4PIN screw plugs, ideal to install on roof inside the cabin or into cargo area, the option to turn and to tilt the lens, because of the metal body and vibration resistance determined to use even under heavier conditions, the image orientation setting is performed on the monitor, e-mark.

CAM6HD Camera on roof AHD 4PIN auto IR

Discontinued

AHD Camera 720p for vehicles, with auto IR, to display on AHD monitor, powered from monitor via M12 4PIN screw plugs, ideal to install on roof inside the cabin or into cargo area, the option to turn and to tilt the lens, because of the metal body and vibration resistance determined to use even under heavier conditions, the image orientation setting is performed on the monitor, e-mark.

Features

  • CMOS 1/3" sensor chip
  • HD resolution 720p
  • automatic illumination, 12 x IR LED
  • angle: sensing: 120°
  • PAL TV system
  • water resistance: IP69K
  • shock resistance min. 4G
  • image orientation: mirror image
  • possibility to rotate / tilt the camera lens while installed
  • 0.5m cable terminated with a 4PIN M12 screw connector
  • DC 12V power supply (powered from the monitor, it is designed also for 24V vehicles)
  • metal camera body
  • microphone: No
  • power consumption: <3W
  • working temperature from -20 to +70 °C
  • dimensions: ø 69 x 54 mm
  • e-mark

Package contents: camera, allen key, screws, double-sided 3M tape

Note. The AHD camera is designed to be displayed on an AHD monitor, analog monitors do not support AHD cameras.

Parameters

Use UNI
For cars commercial
Signal AHD
Plugs M12
Weight 0.218 kg
